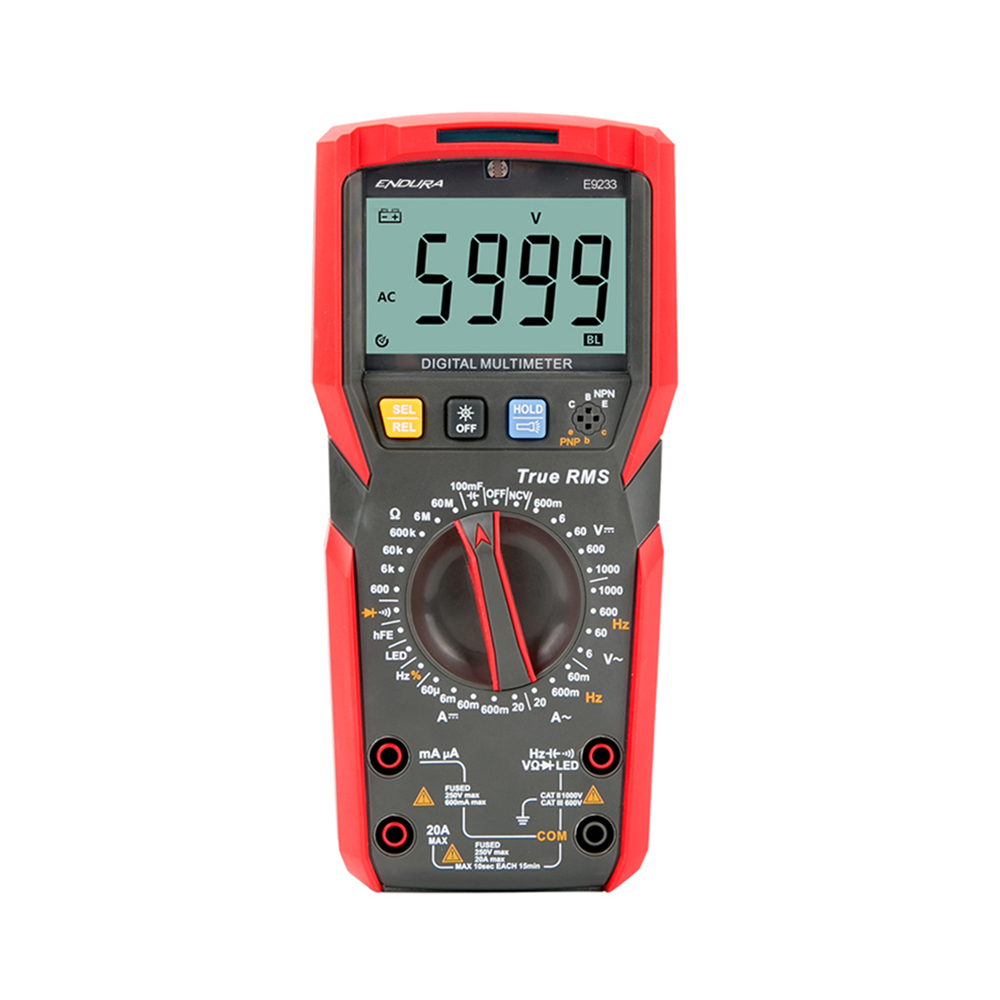

DIGITAL MULTIMETER

Product sheet Return to list

MAXIMUM READING:6000
RANGE (AUTO / MANUAL):Manual
DC VOLTAGE:600mV/6V/60V/600V/1000V±(0.5% + 2)
AC VOLTAGE:6V/60V/600V/1000V±(0.8% + 5)
DC:60μA/6mA/60mA/600mA/20A±(0.8%+8)
AC:60mA/600mA/20A±(1.0%+12)
RESISTANCE:600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ±(0.8% +3)
CAPACITANCE:nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF±(2.5%+20)
FREQUENCY:10Hz-10MHz±(0.1%+4)
DUTY CYCLE:5% ~ 95%
BATTERY:4x1.5V AAA battery
Professional NCV detection function
True RMS voltage and current detection; (Voltage Up to 1000V, current up to 20A)
100mF large capacitor fast charging measurement;
hFE triode measurement,Detection of the current amplification of triode
LED test
With flashlight and automatic screen backlight,convenient for users to work in a dark environment
DIODE TEST function、DATA HOLD function、AUTOMATIC SHUT-DOWN function

  • PART# CONTENTS
    (mm)
    WEIGHT
    (g)
    PACKING QUANTITY
  • E9233 189x89x53345(BARE METAL)1
