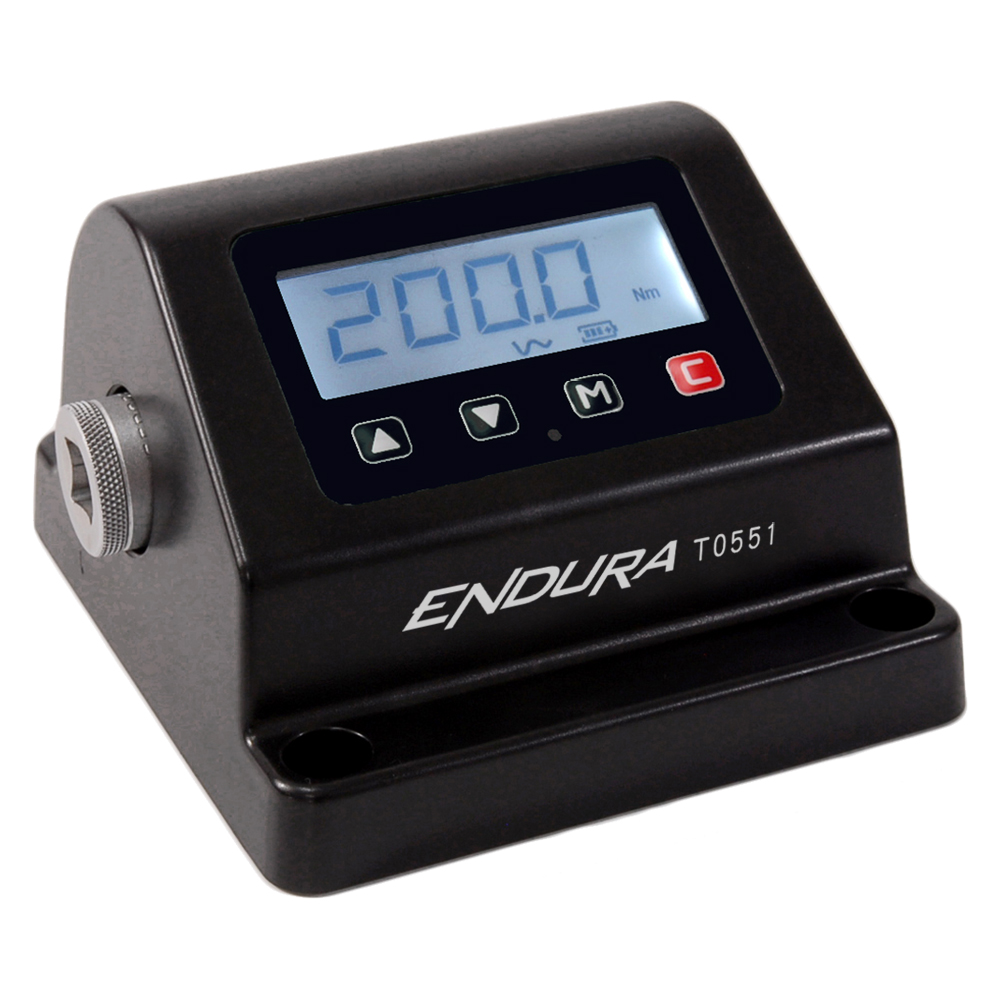

PORTABLE TORQUE TESTER

Product sheet Return to list
Three test modes are available: first peak mode, peak mode and tracking mode
In the first peak and peak mode, the highest value is held
When the set torque value is reached, there will be three-color lights and buzzer alarm
Accuracy ±1% (within 10%-100% of full load)
Switch among four units: N.m, Lb.ft, Lb.in, Kg.cm
With data storage function, 1500 groups of data can be stored as needed, each group includes time, unit and value
The display is backlit for easy operation in dark environment

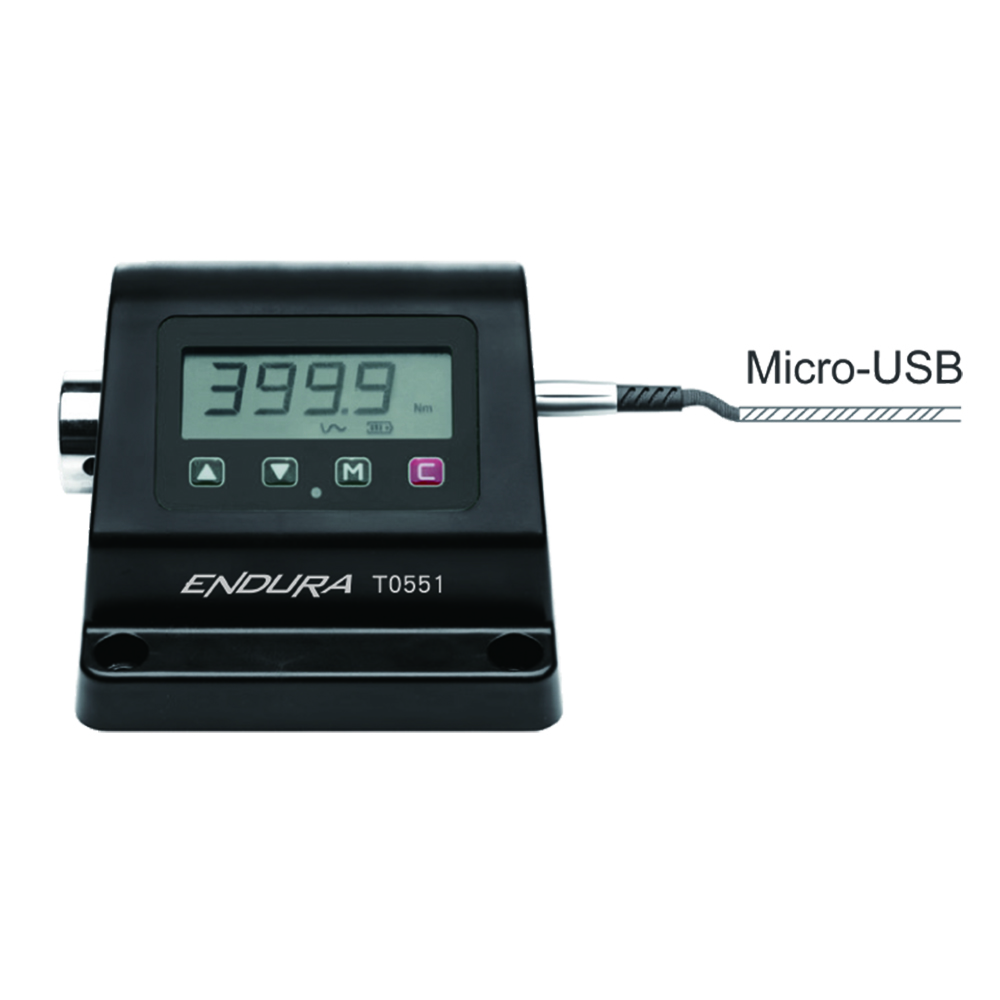

With a Micro-USB interface to upload data or charge

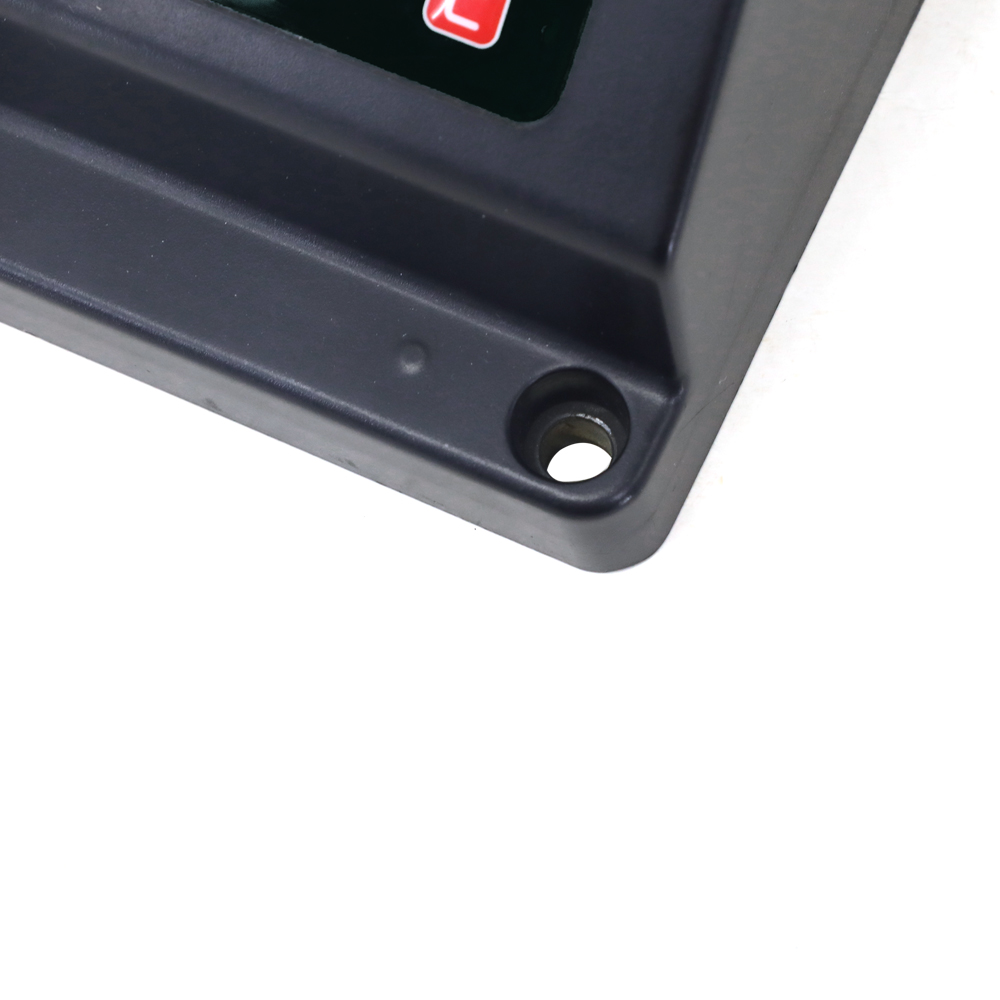

There are four bolt holes at the bottom, so the instrument can be fixed on the workbench or other bases
Built-in rechargeable lithium battery, which can be charged by plugging in the power adapter
Automatically shut down without any operation in 10 minutes

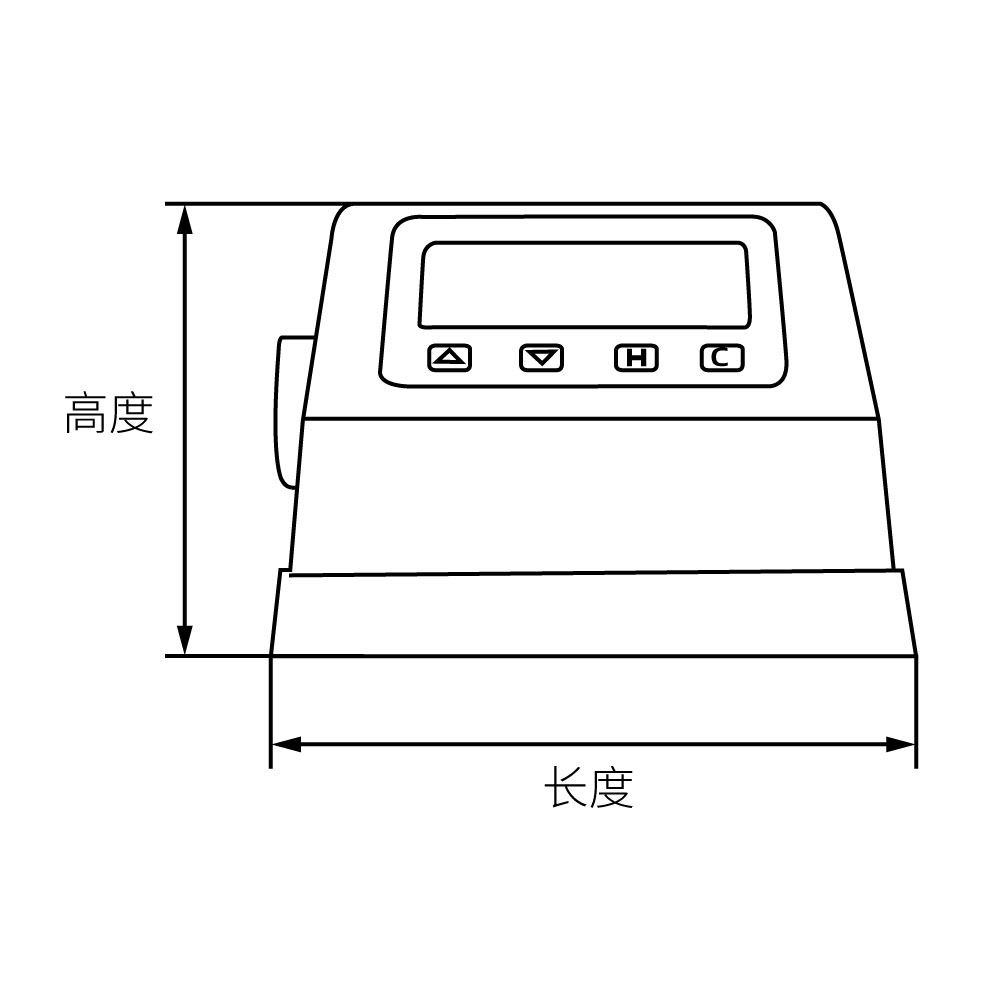

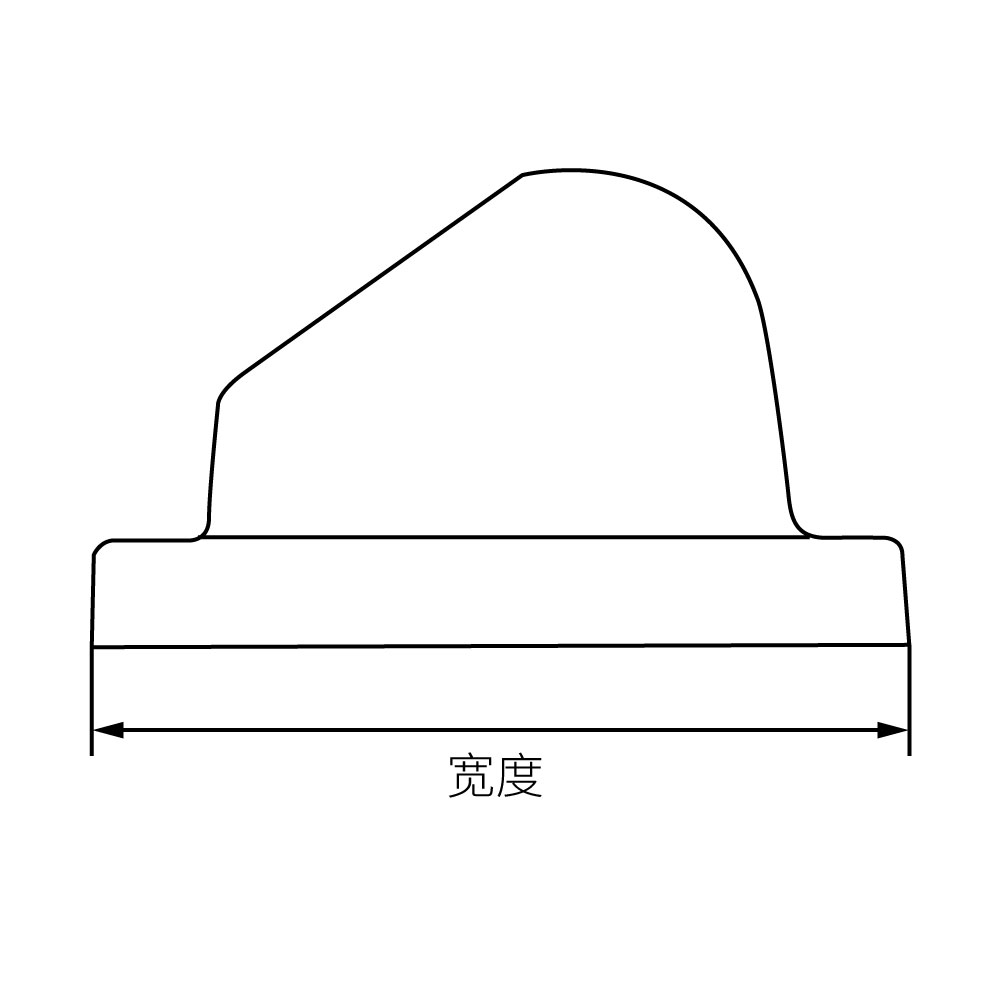

  • PART# CONTENTS
    (N.m)
    LENGTH
    (mm)
    WIDTH
    (mm)
    HEIGHT
    (mm)
    WEIGHT
    (kg)
    DRIVERACCURACYPACKING QUANTITY
  • T0551 1.2—12135136852.21/4"±1%1
  • T0552 2.5—25135136852.43/8"±1%1
  • T0553 4.0—40135136852.63/8"±1%1
  • T0554 7.5—75135136852.83/8"±1%1
  • T0555 15—150135136852.91/2"±1%1
  • T0556 25—250135136853.11/2"±1%1
  • T0557 40—400135136853.21/2"±1%1
  • T0558 65—650135136853.23/4"±1%1
  • T0559 110—1100135136853.43/4"±1%1
