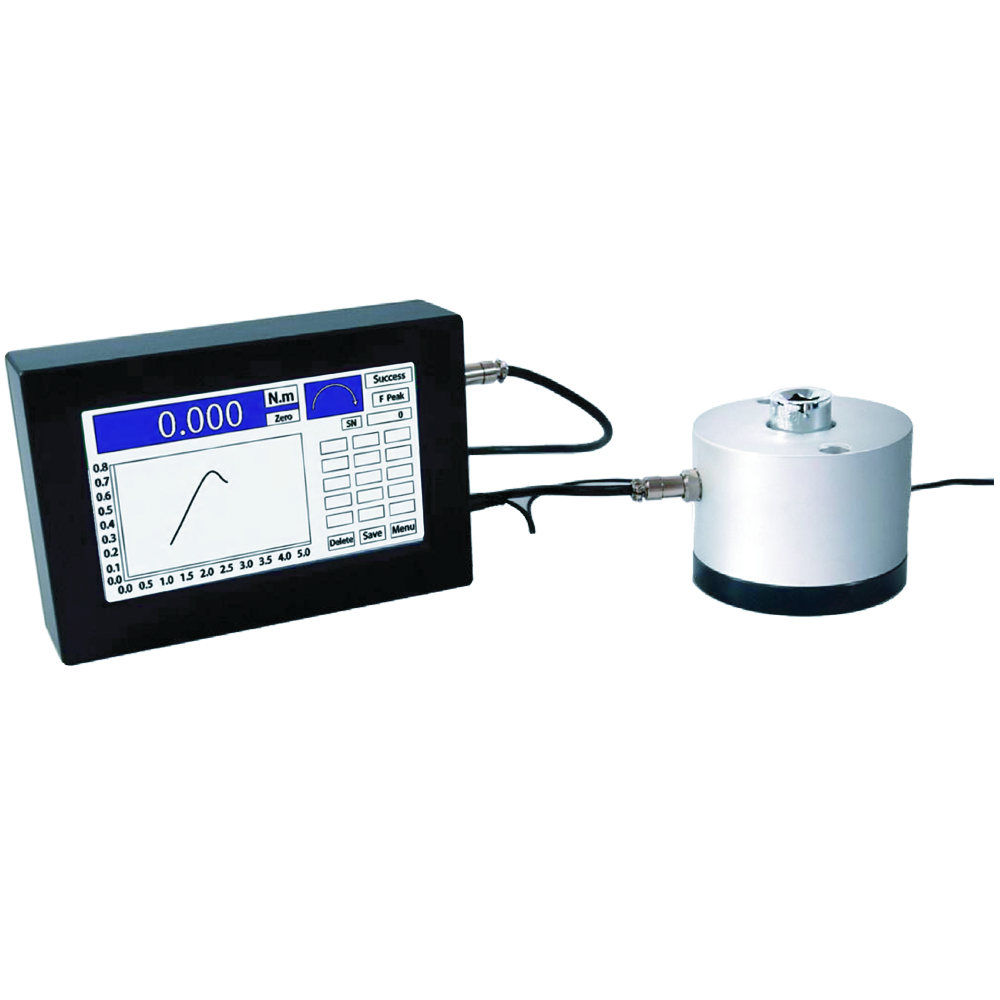

TORQUE TESTER

Product sheet Return to list
Accuracy ±0.5% (within 10%-100% of full load)

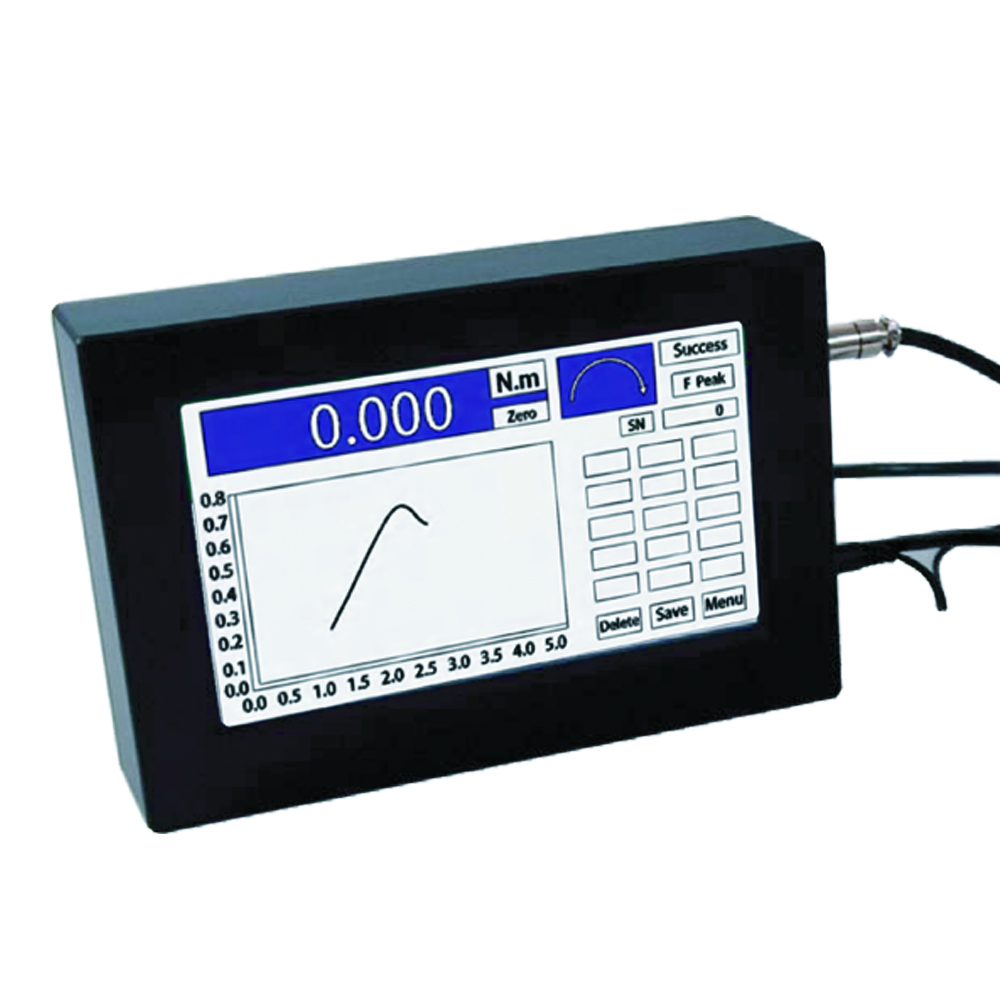

7-inch color touch screen, simple menu, easy to operate
Chinese and English languages
Eight types of torque units: N.m, cN.m, kgm, ckgm, gm, Lb.ft, Lb.in, Oz.in
Three test modes are available: first peak, peak and tracking mode
Three interface options: regular, preset, waveform
During the test, 15 test data will be automatically recorded
Can store 5000 data, preset 100 groups of parameters
During continuous testing, it will be automatically cleared
Alarm when overload
With USB interface to upload data

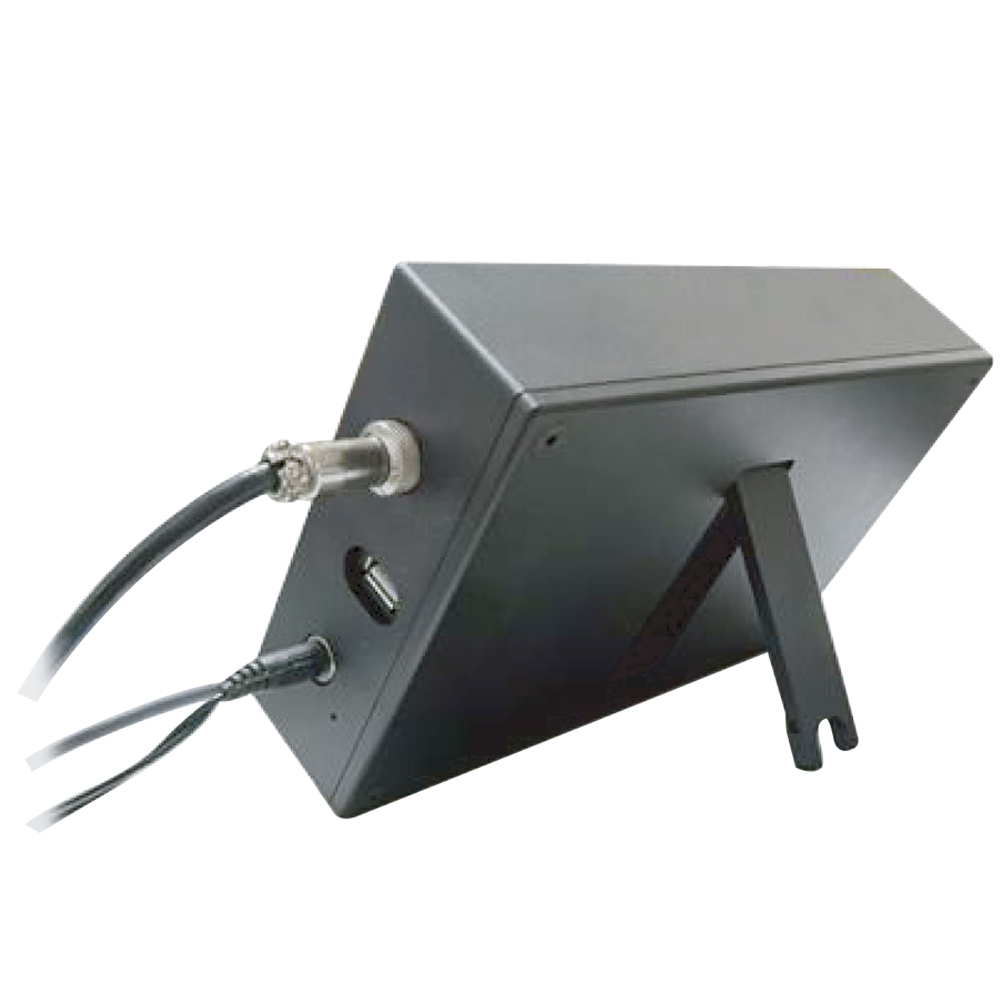

Embedded feet on the back to support tilted screen
  • PART# CONTENTS
    (N.m)
    HEIGHT
    (mm)
    WEIGHT
    (kg)
    DRIVEROUTER DIAMETER
    (mm)
    MATCHABLE TEST FRAMEPACKING QUANTITY
  • T0571 1.2—12772.11/4"102T05411
  • T0572 2.5—25772.33/8"102T05411
  • T0573 4.0—40772.333/8"102T05411
  • T0574 7.5—75772.373/8"102T05411
  • T0575 15—150772.441/2"102T05411
  • T0576 25—250772.521/2"102T05411
  • T0577 40—400772.441/2"102T05421
  • T0578 65—6501032.543/4"136T05421
  • T0579 125—12501032.733/4"136T05431
