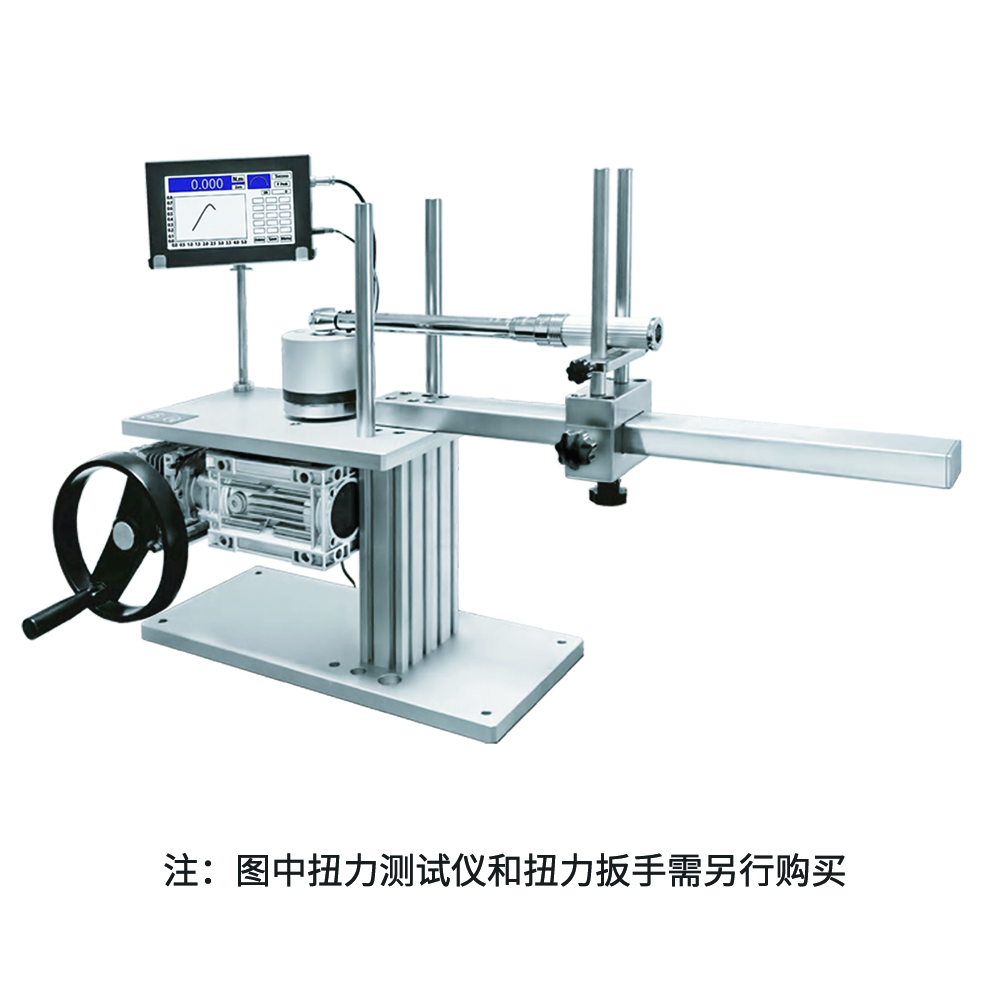

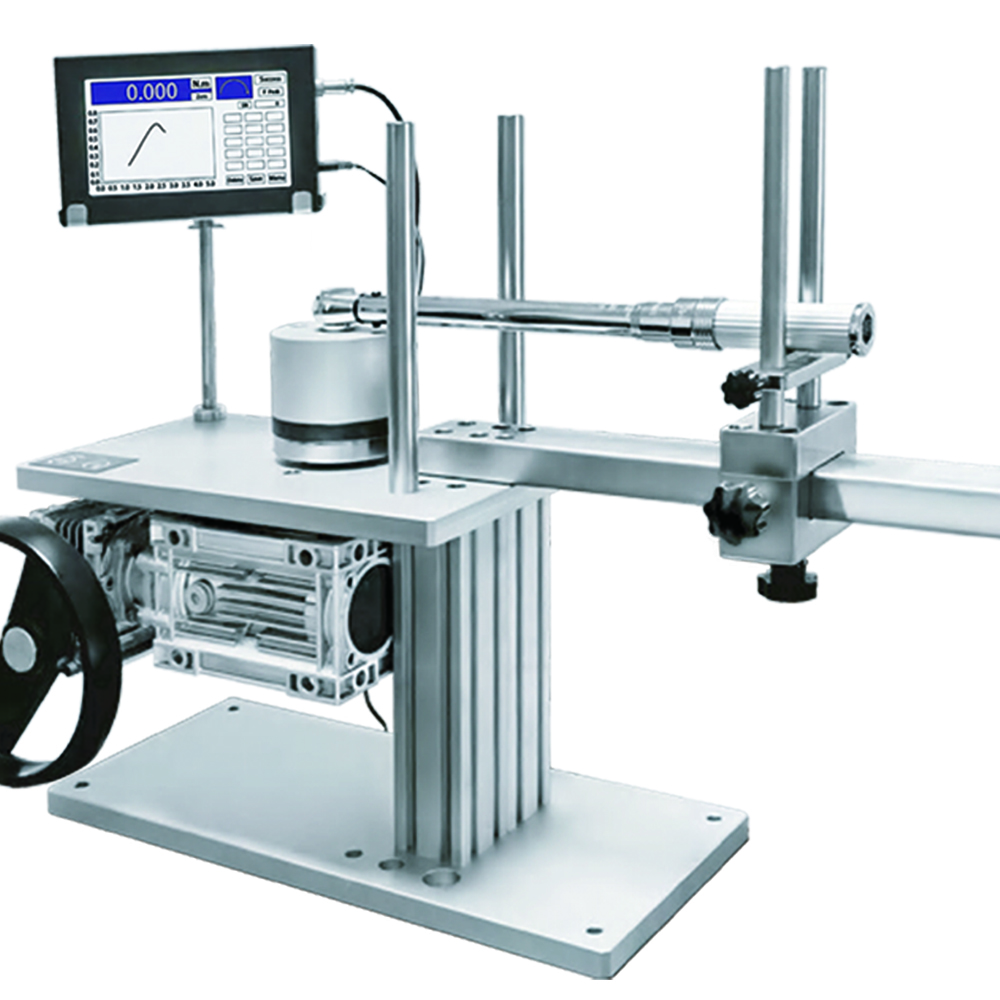

TORQUE TEST STAND

Product sheet Return to list

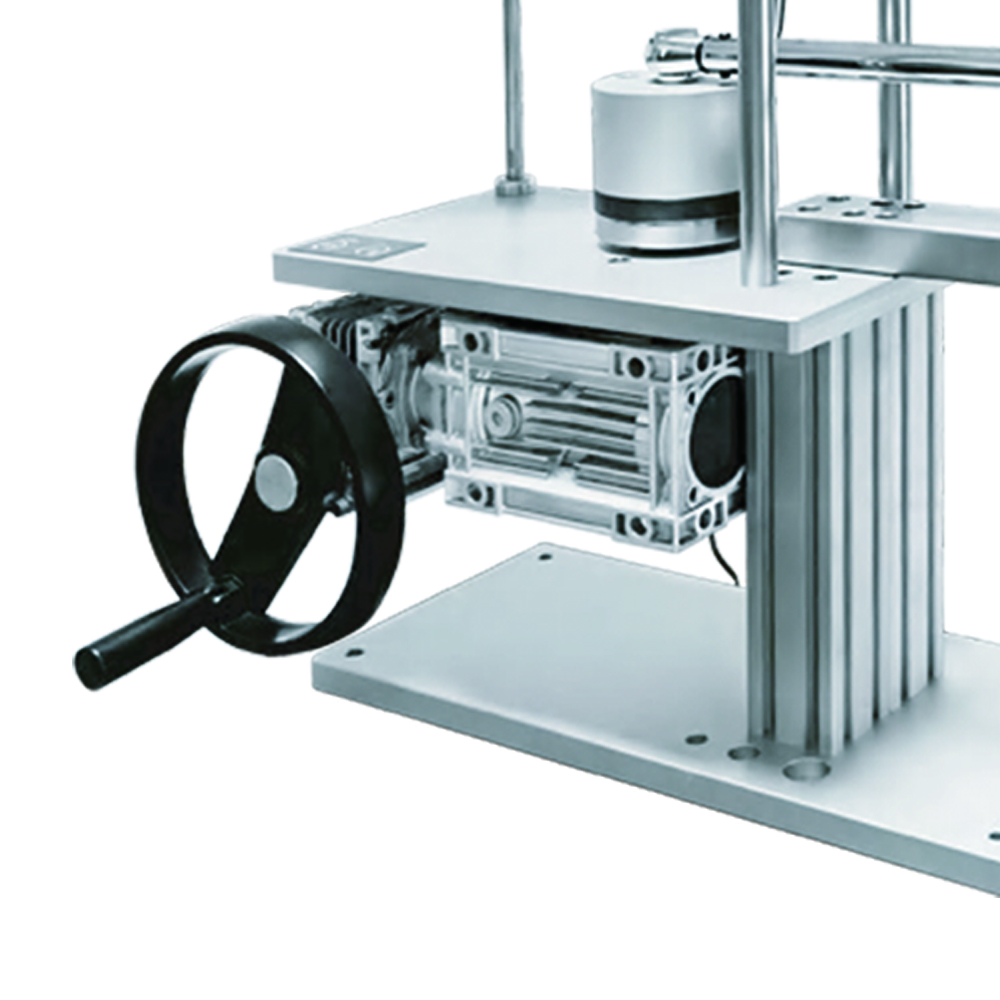

Rotate the hand crank to test the torque wrench with uniform force
With reducer device, the test is more labor-saving
Different sensors can be installed on the sensor shaft by configuring a suitable transition plate

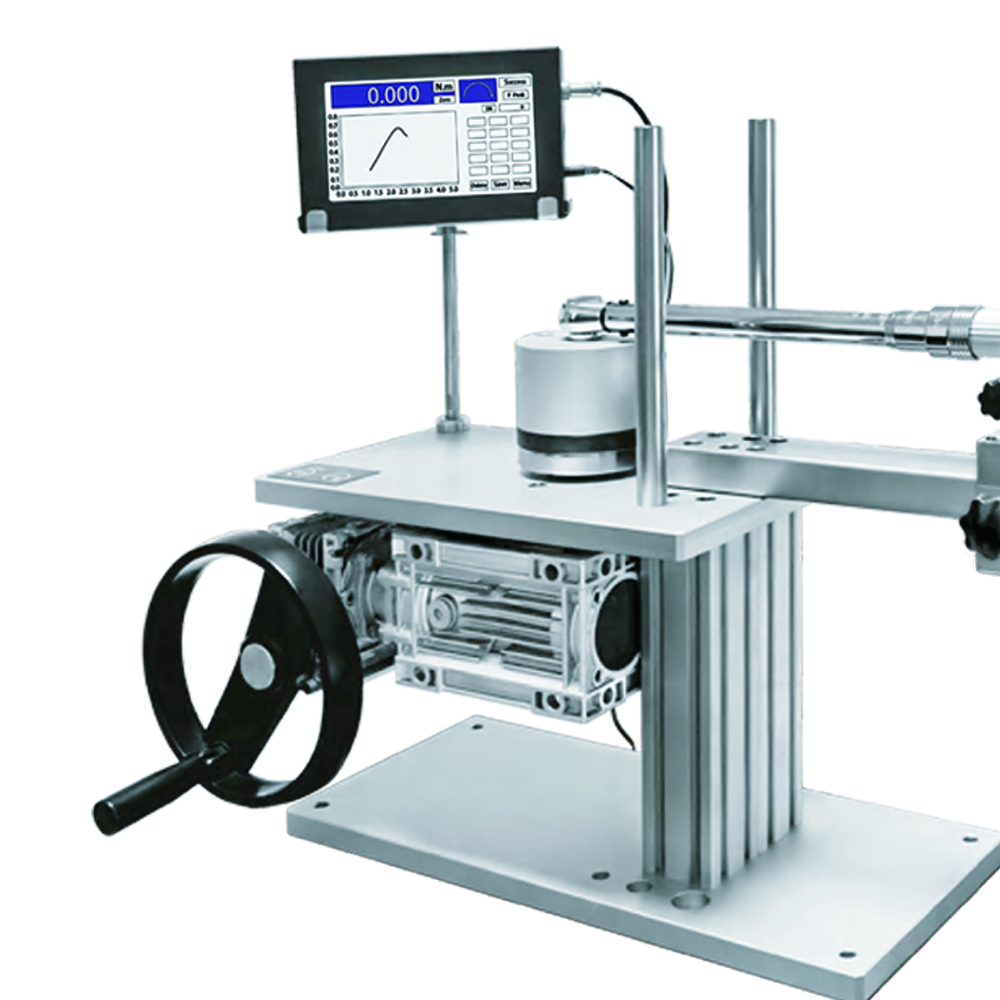

The instrument rack tray can be raised and lowered, so it's easier to read

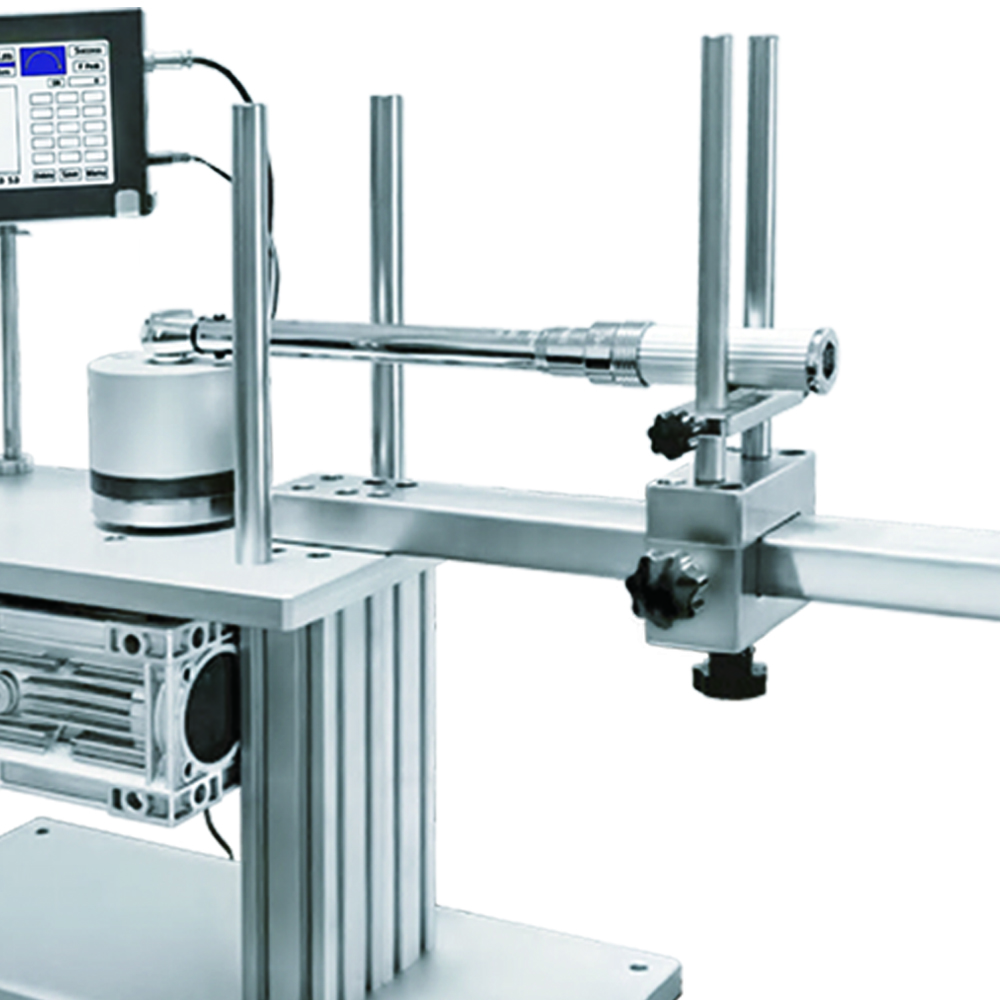

According to the different lengths of the torque wrench, the slider can be moved and the support plate can be adjusted to keep balance

  • PART# CONTENTS
    (N.m)
    L*W*H
    (mm)
    WEIGHT
    (kg)
    EFFECTIVE ARMENGT MIN
    (mm)
    EFFECTIVE ARMENGT MAX
    (mm)
  • T0541 350860x290x59032.5197686
  • T0542 11001760x350x590763801350
  • T0543 20002090x290x590804201690
