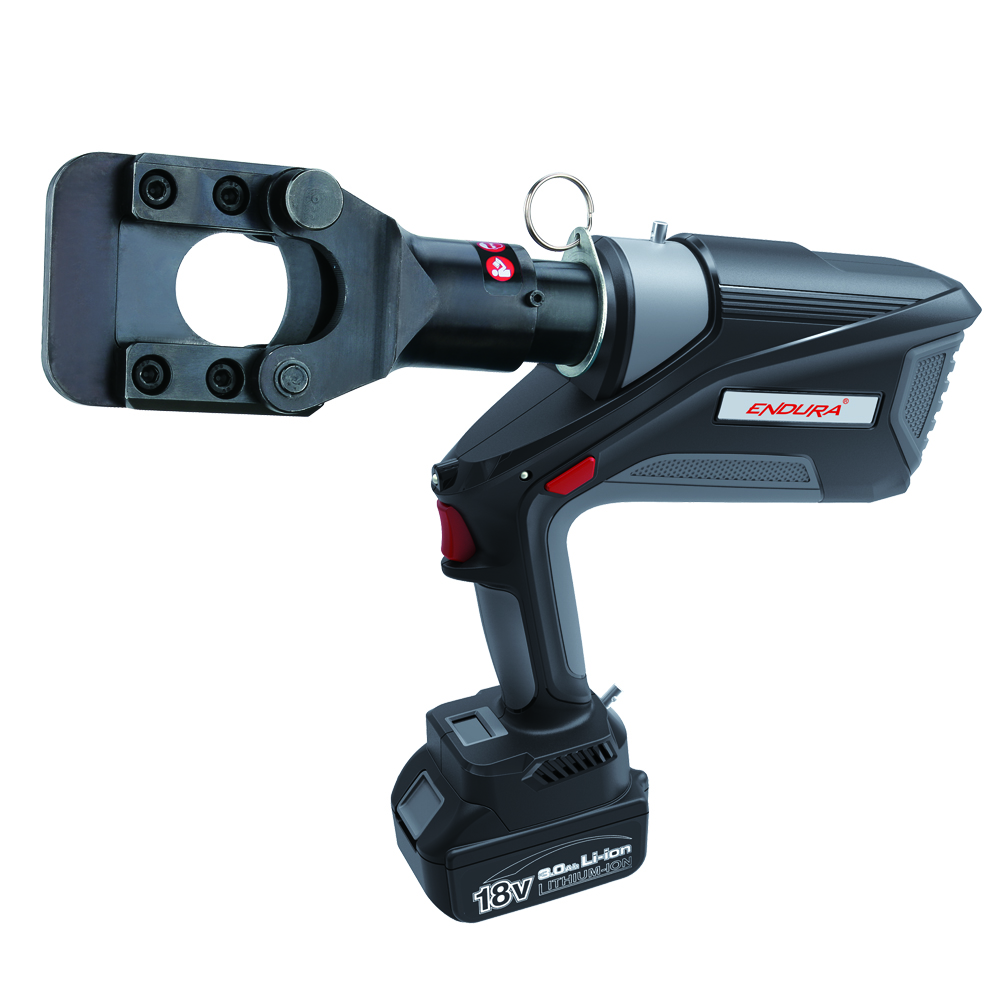

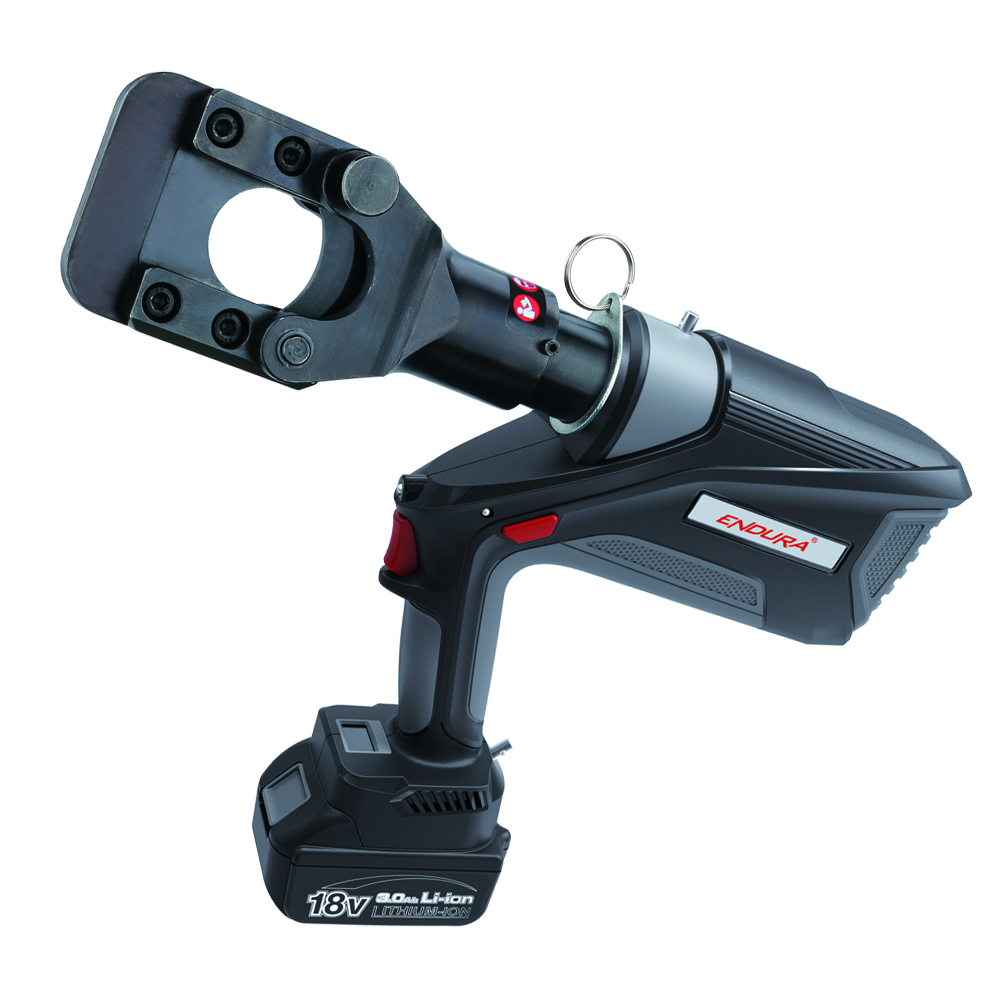

RECHARGEABLE HYDRAULIC CUTTING TOOL Φ45

Product sheet Return to list

OUTPUT FORCE:60kn
STROKE:50mm
SHEAR TIME:5-18seconds (according to cable diameter)

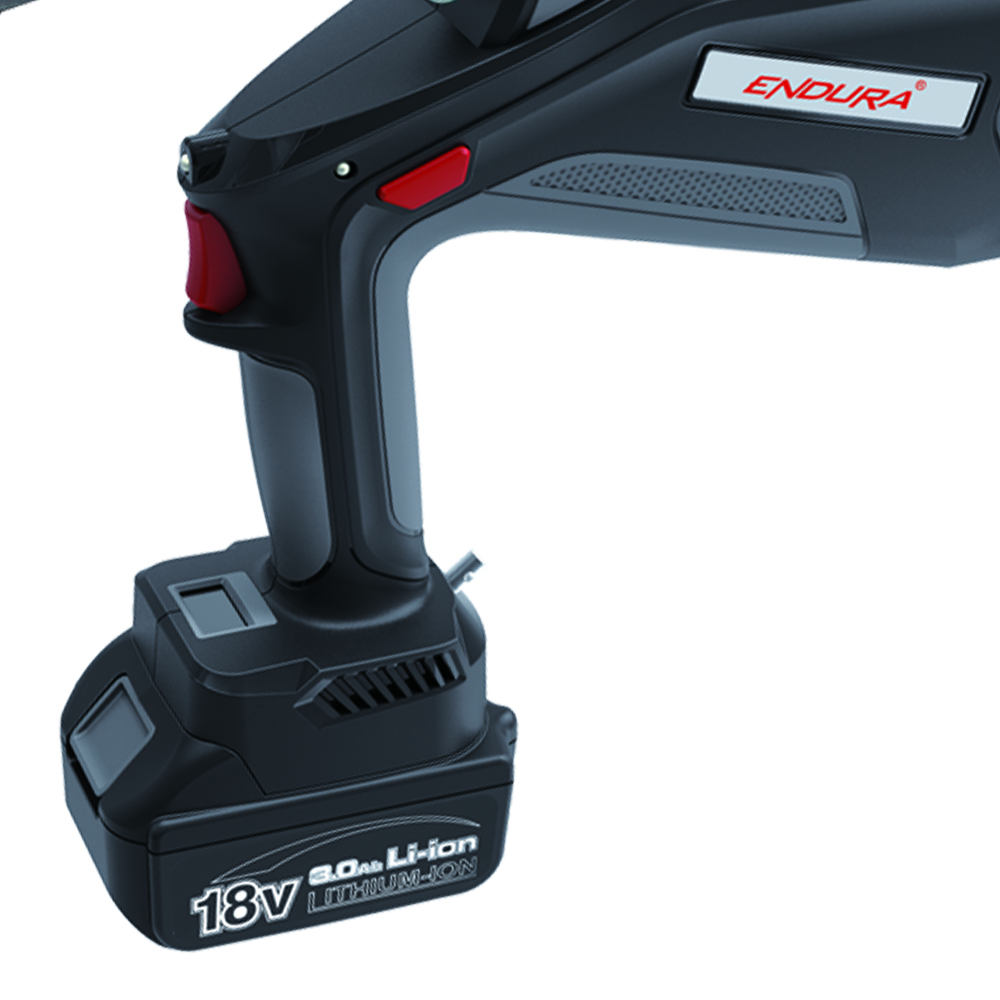

NUMBER OF BATTERY:2
CHARGER:1
CHARGING TIME:1h

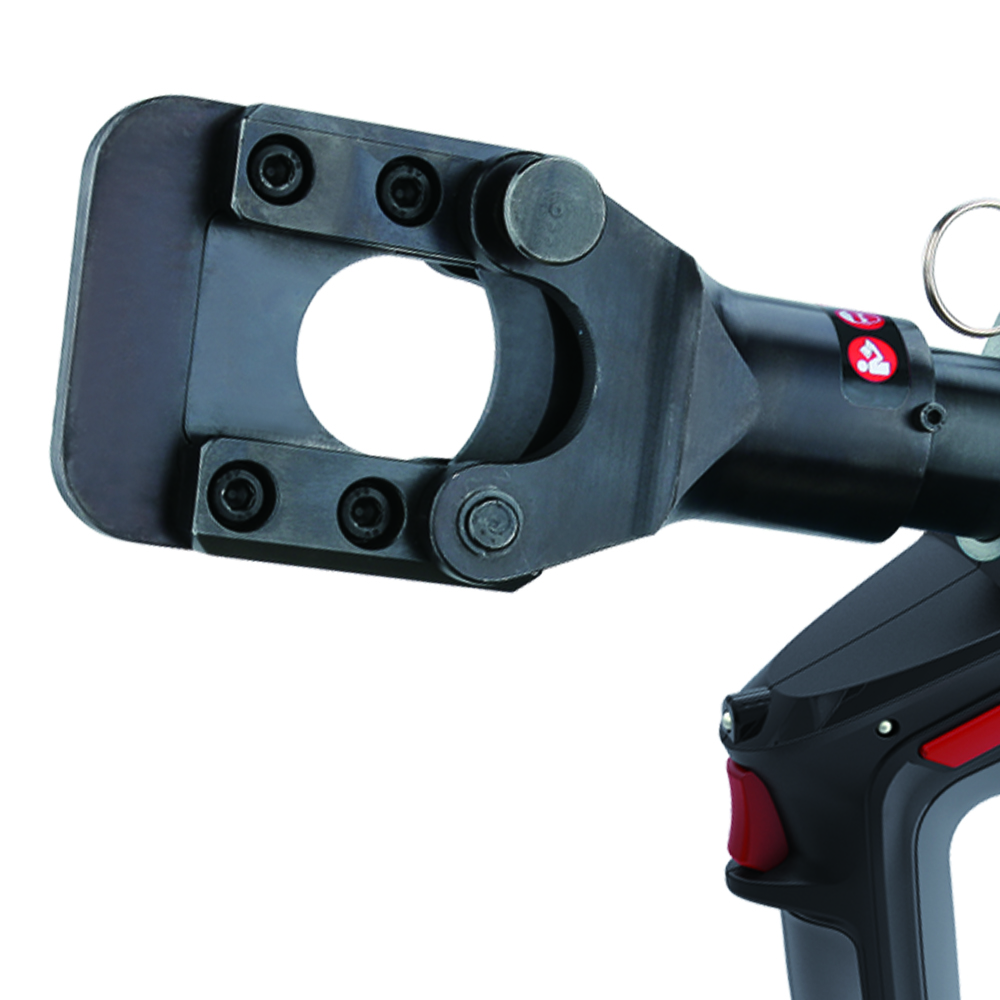

BLADE:1pair
CYLINDER SEAL:1set
SAFETY VALVE SEAL:1set
SHEAR CAPACITY:
SINGLE CORE COPPER CABLE≤∅45mm
MULTI-CORE COPPER CABLE≤∅45mm
SINGLE CORE ALUMINUM CABLE≤∅45mm
COPPER -SHEATHED CABLE≤∅45mm

In order to make motor life longer and provide stronger momentum,  the product uses brushless motor

20 seconds LED light delay lighting, suitable for continuous work in poor lighting environment

Motor-driven, equipped with a microcomputer control system and micro dual-stage hydraulic system

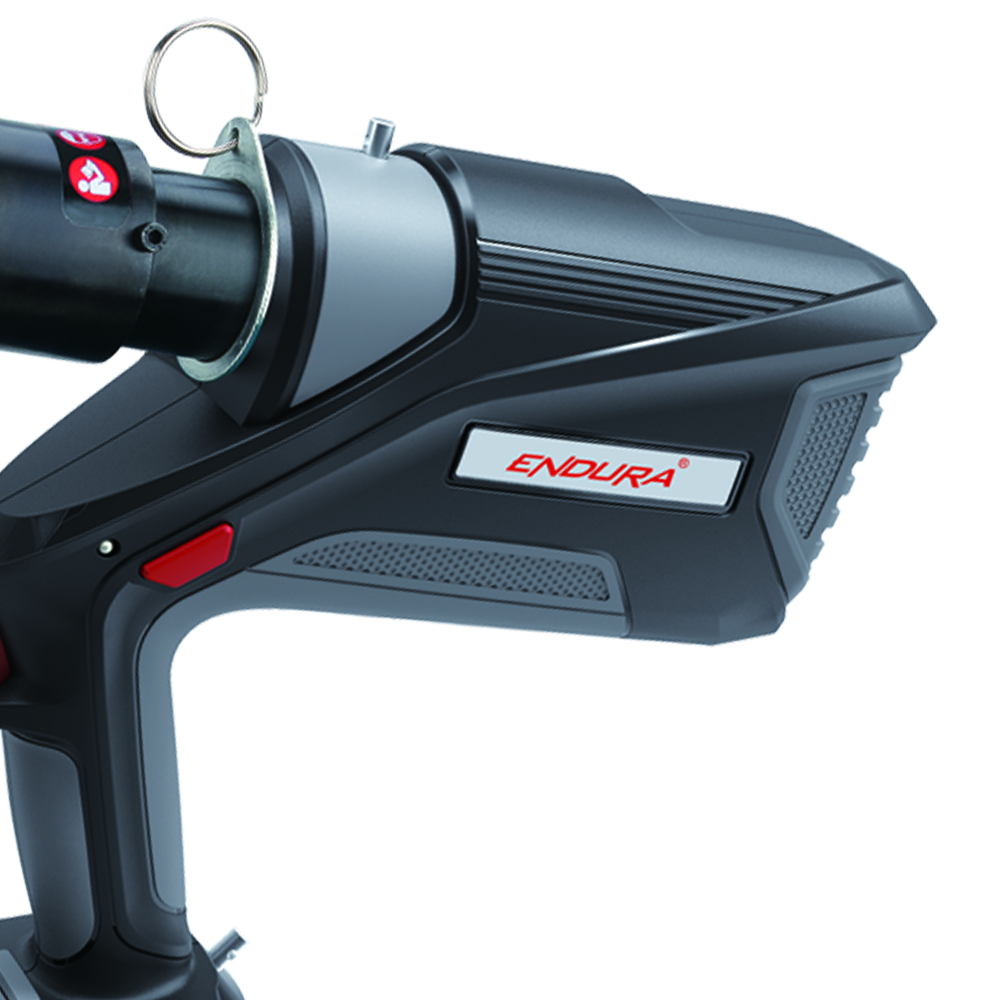

OLED digital display can show the remaining power, shear times and maintenance reminders

  • PART# WEIGHT
    (kg)
    VOLTAGE/CAPACITANCEPACKING QUANTITY
  • E0290 11.8(battery included)18V/3.2AH1
