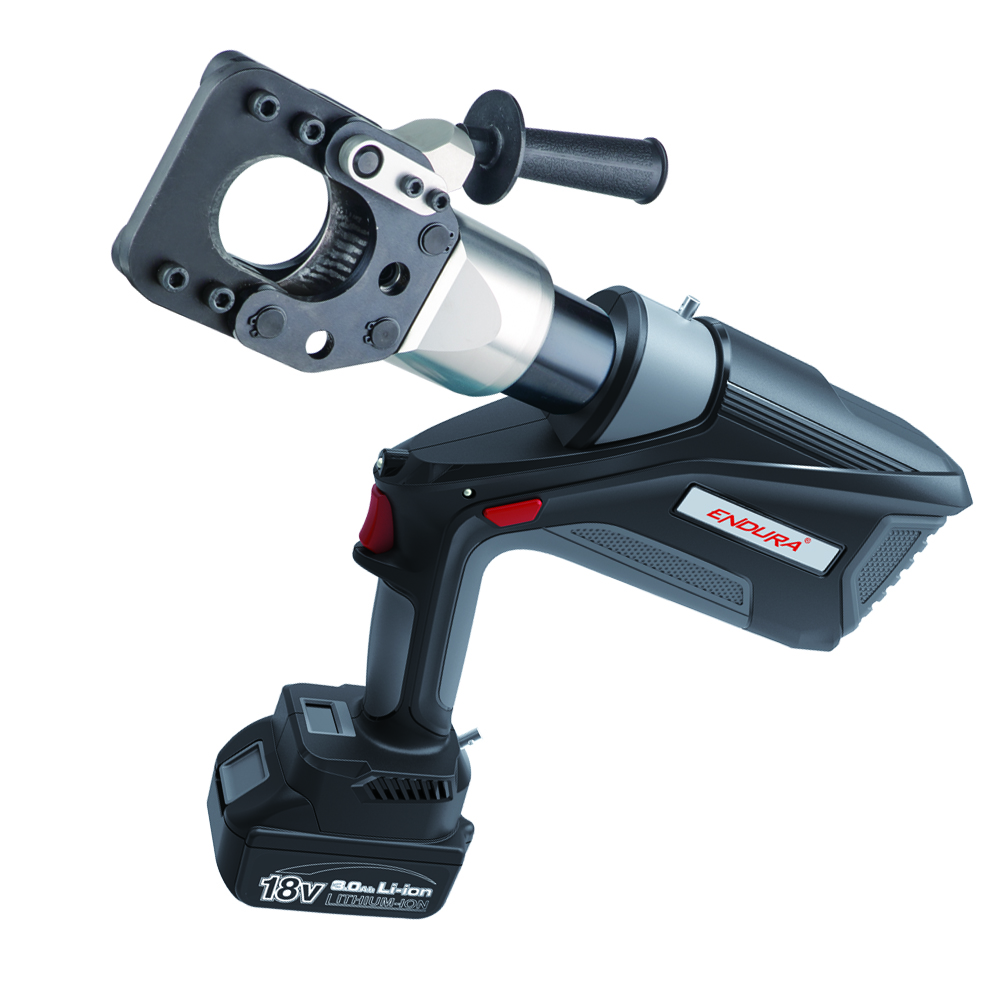

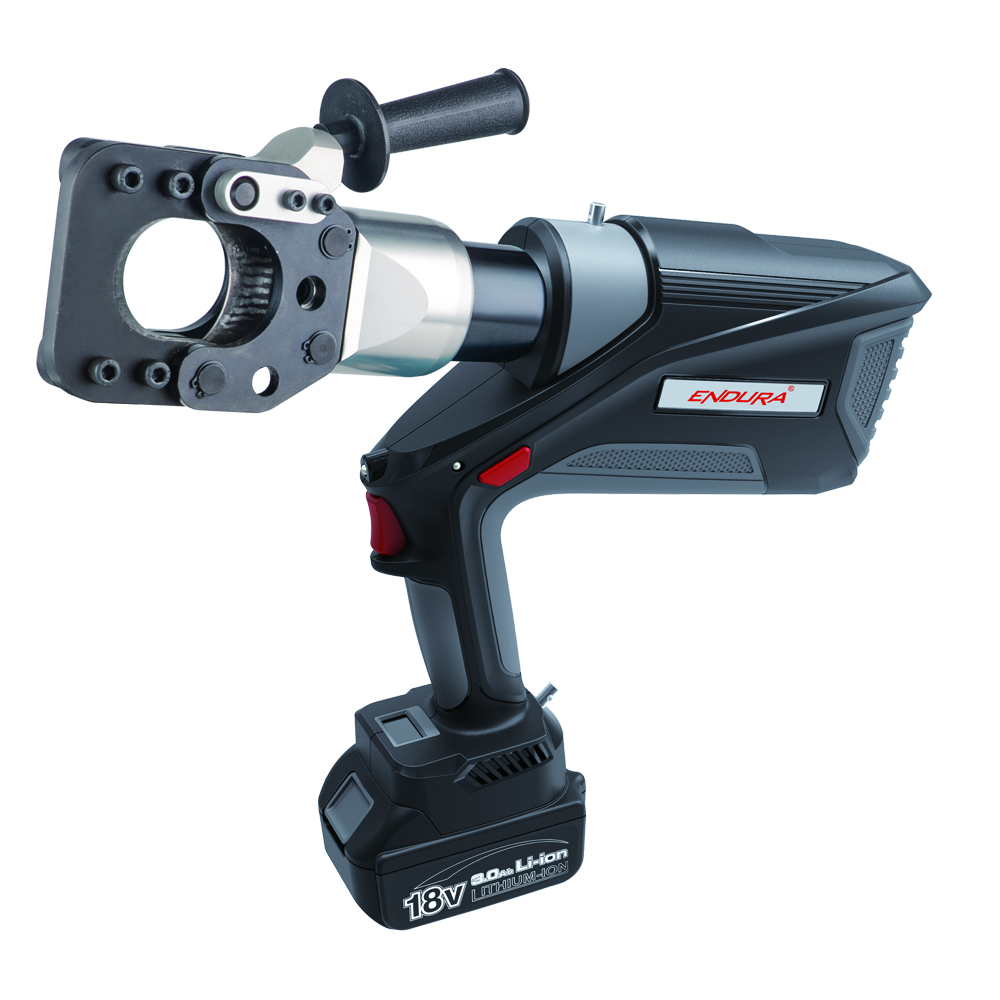

RECHARGEABLE HYDRAULIC CUTTING TOOL Φ55

Product sheet Return to list

OUTPUT FORCE:120kn
STROKE:58mm
SHEAR TIME:8-20seconds(according to cable diameter)
NUMBER OF BATTERY:2
CHARGER:1
CHARGING TIME:1h
BLADE:1pair
CYLINDER SEAL:1set
SAFETY VALVE SEAL:1set
SHEAR CAPACITY:
SINGLE CORE COPPER CABLE≤∅55mm
MULTI-CORE COPPER CABLE≤∅55mm
SINGLE CORE ALUMINUM CABLE≤∅55mm
COPPER -SHEATHED CABLE≤∅55mm
STEEL-CORED ALUMINIUM STRAND≤∅52mm
STEEL STRAND≤∅20mm
STEEL WIRE ROPE≤∅25mm
STEEL BAR≤∅ 20mm
SOFT IRON ROD, COPPER ROD≤∅25mm

In order to make motor life longer and provide stronger momentum,  the product uses brushless motor

20 seconds LED light delay lighting, suitable for continuous work in poor lighting environment

Motor-driven, equipped with a microcomputer control system and micro dual-stage hydraulic system

OLED digital display can show the remaining power, shear times and maintenance reminders


  • PART# WEIGHT
    (kg)
    VOLTAGE/CAPACITANCEPACKING QUANTITY
  • E0291 12.5(battery included)18V/3.2AH1
